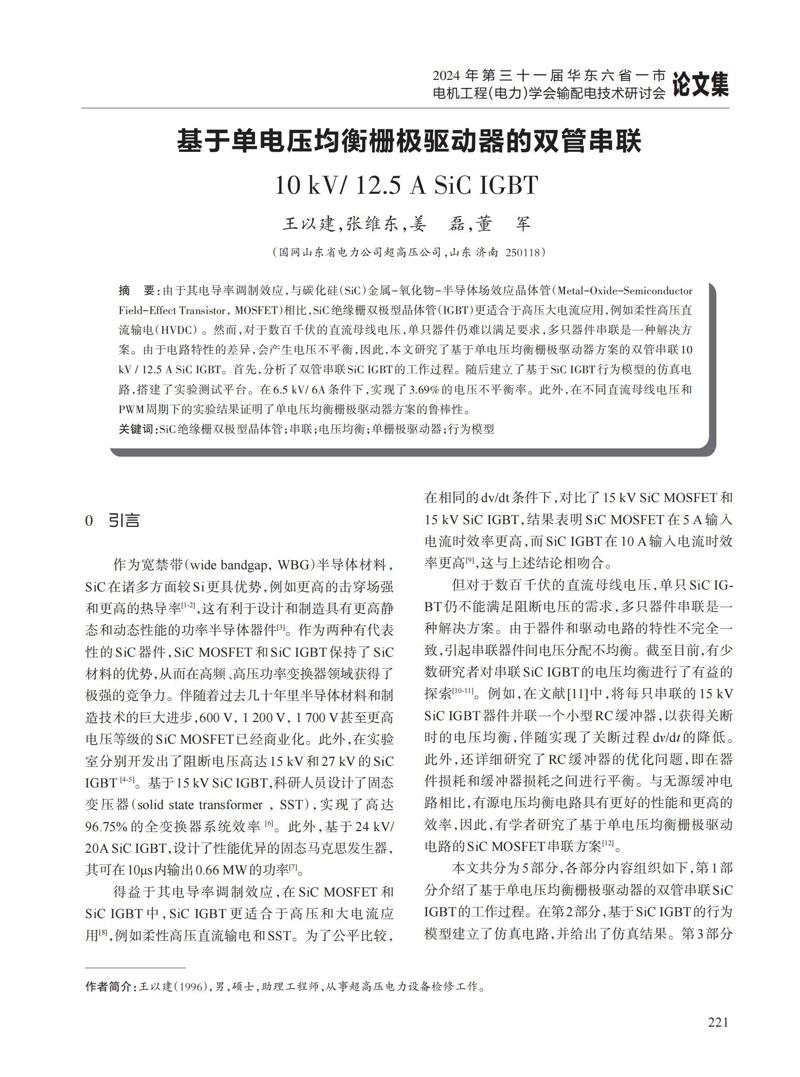

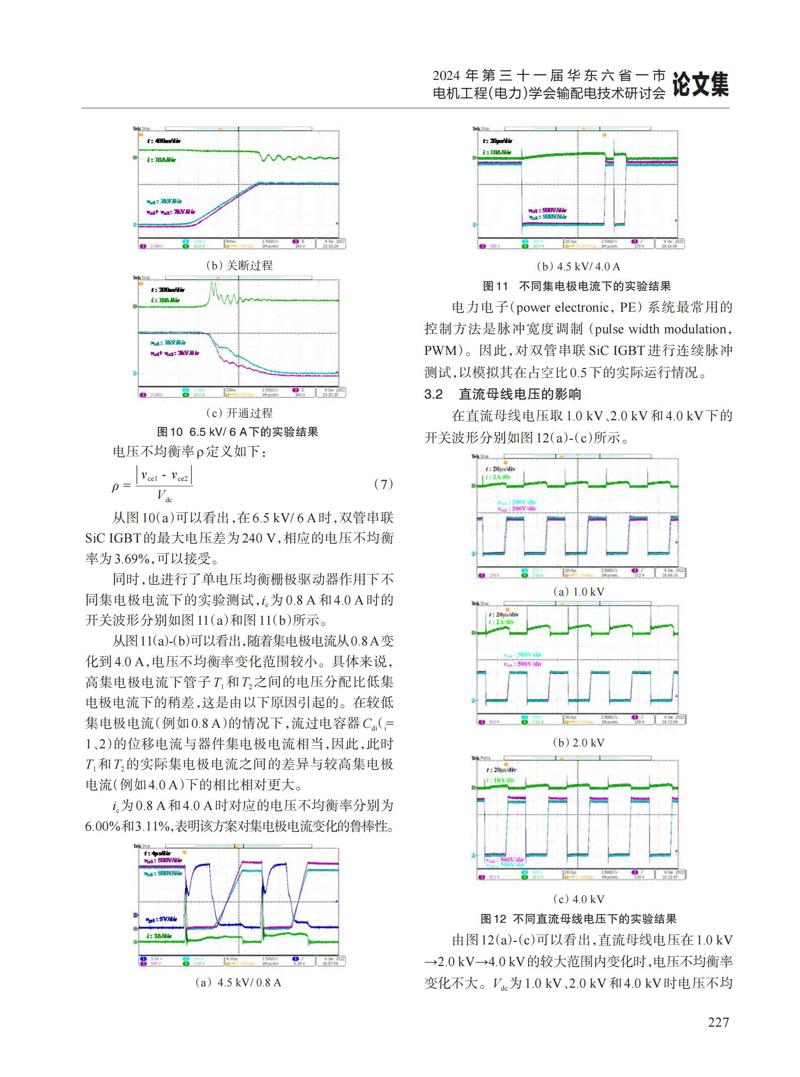

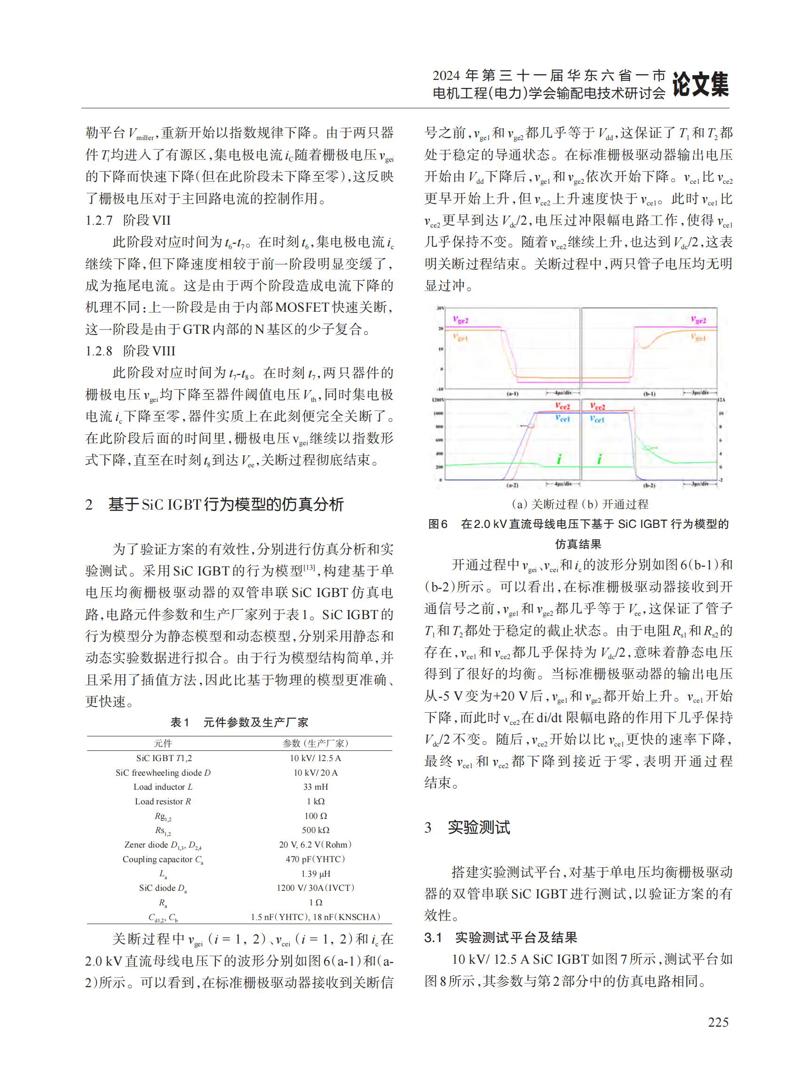

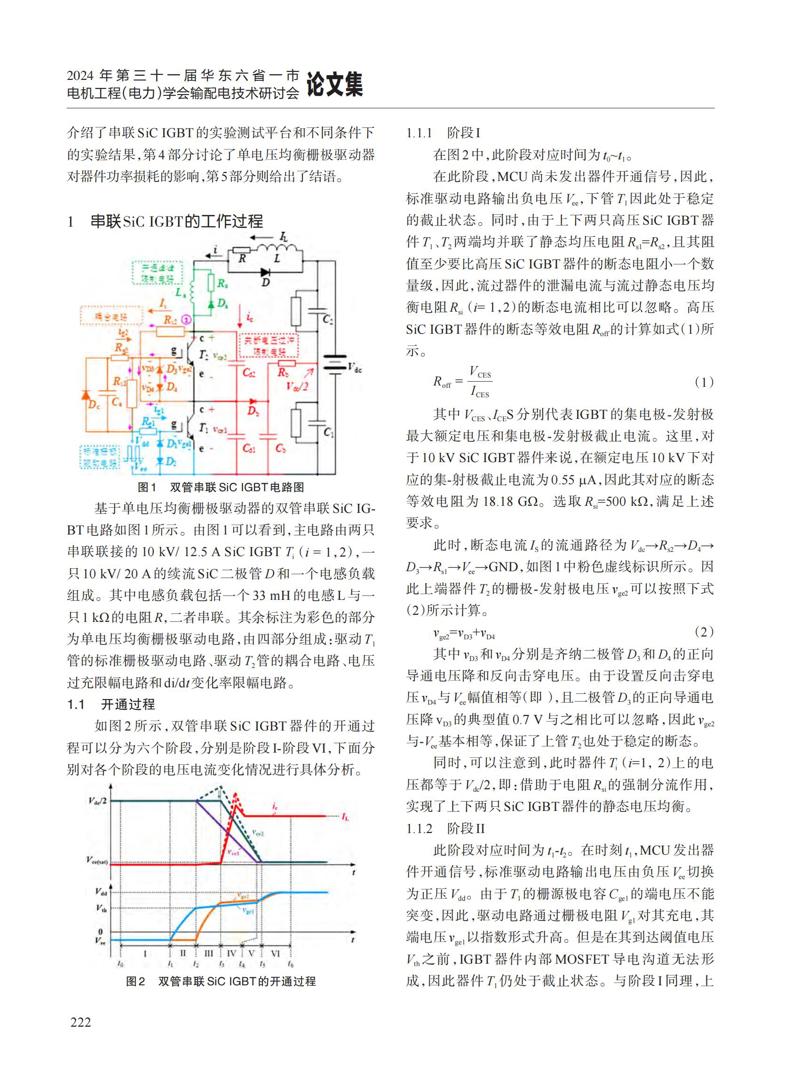

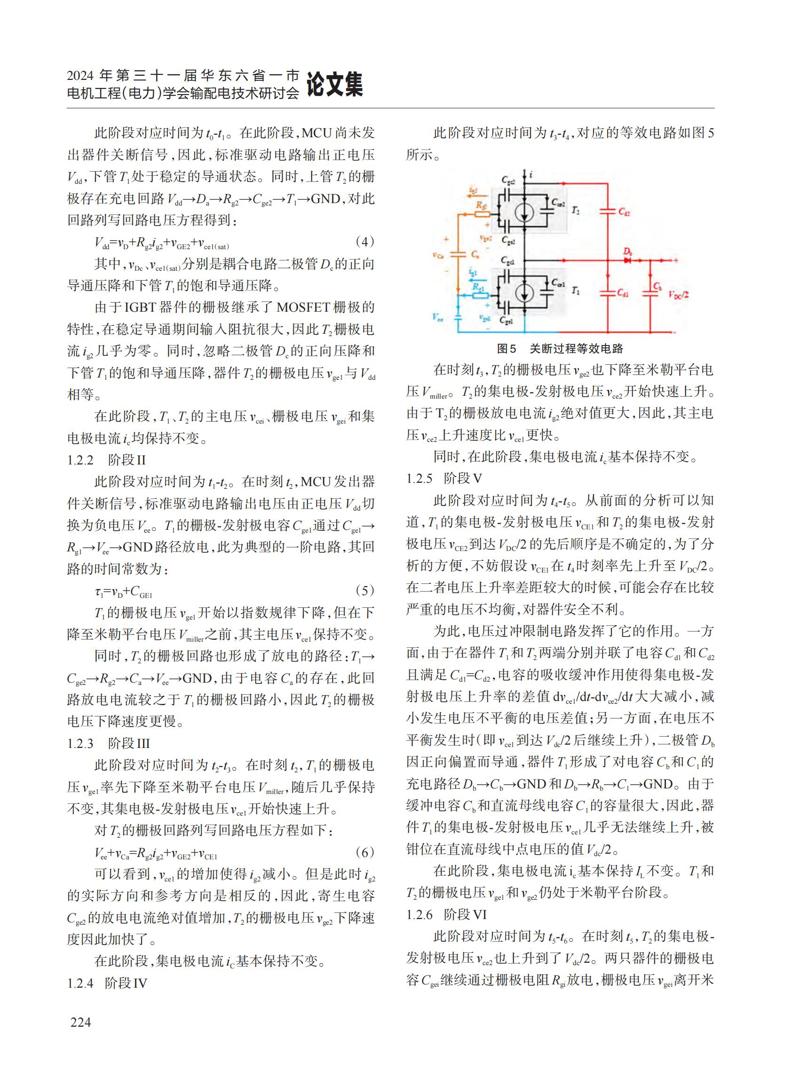

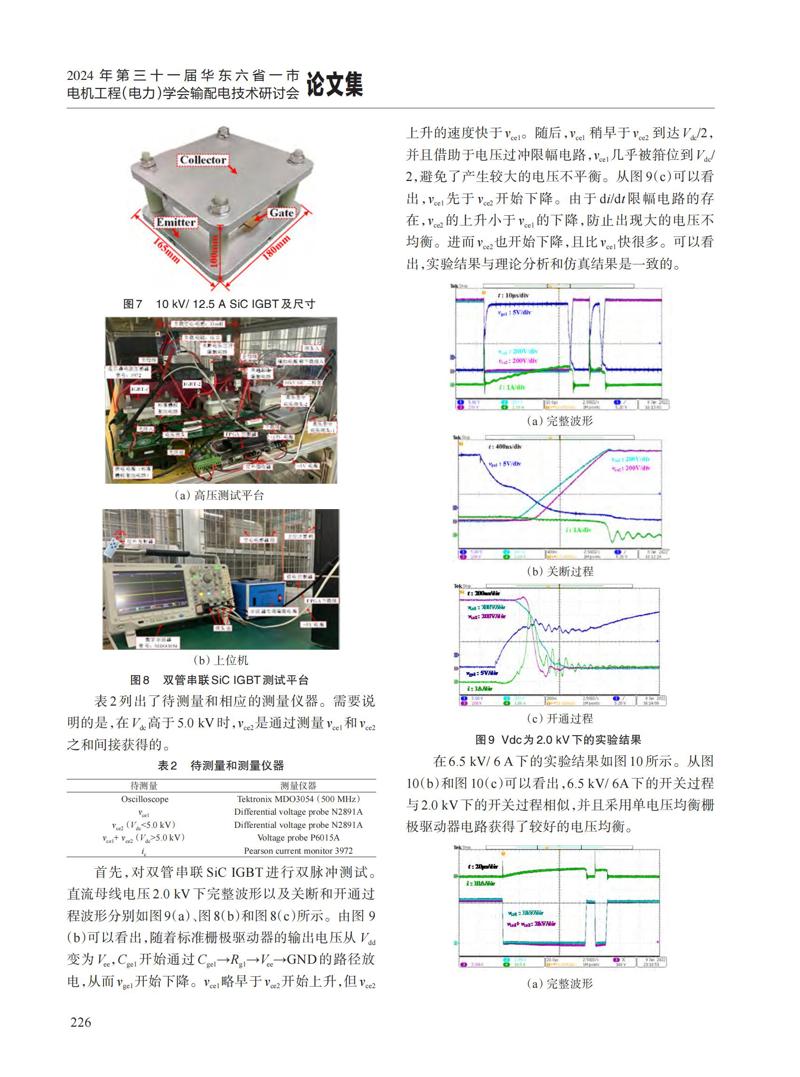

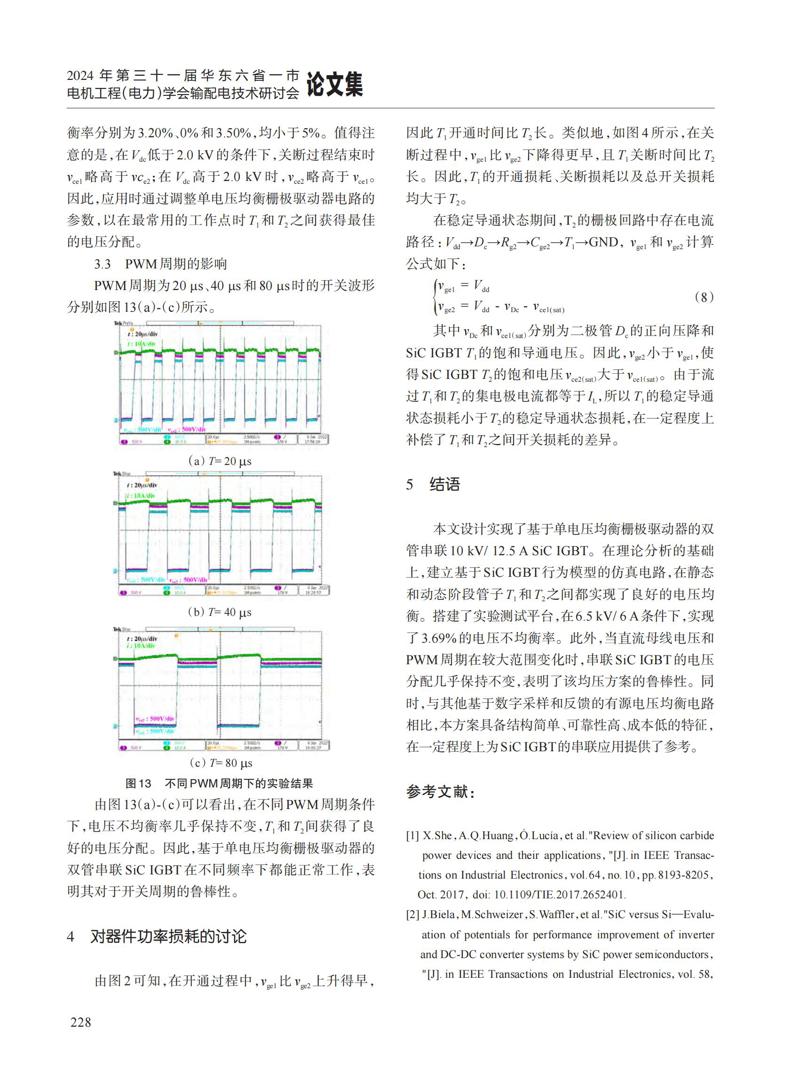

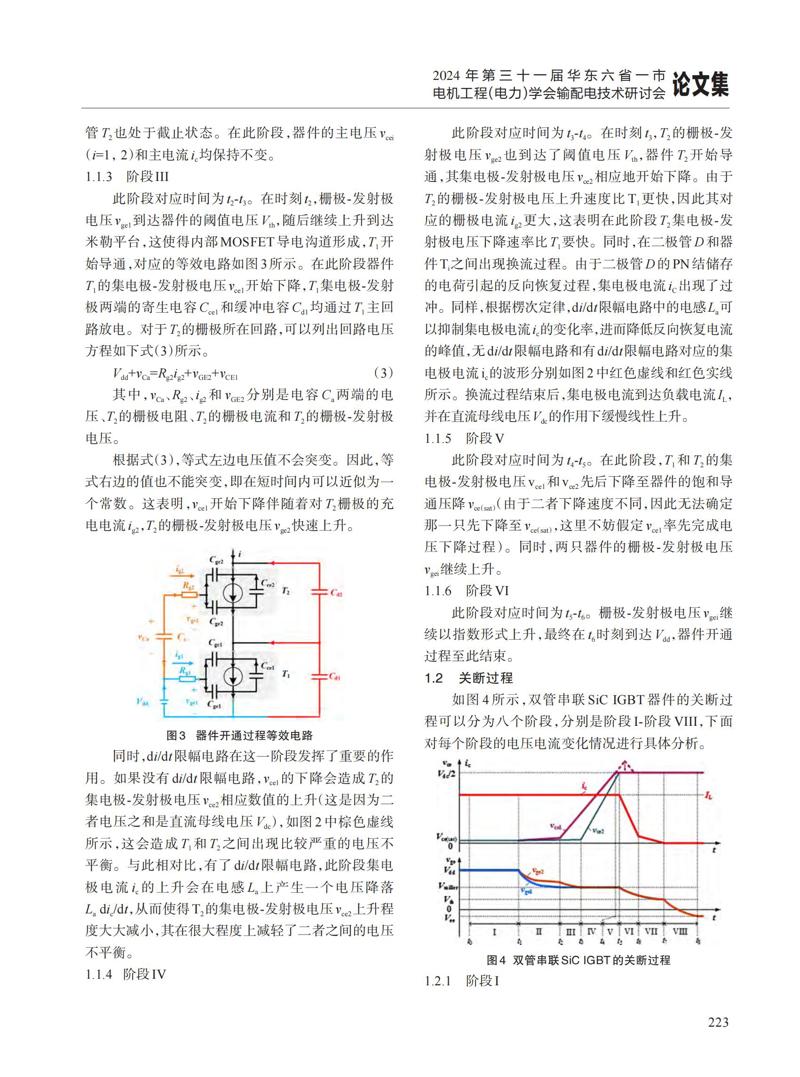

由于其电导率调制效应，与碳化硅（SiC）金属-氧化物-半导体场效应晶体管（Metal-Oxide-Semiconductor Field-Effect Transistor，MOSFET）相比，SiC 绝缘栅双极型晶体管（IGBT）更适合于高压大电流应用，例如柔性高压直流输电（HVDC）。然而，对于数百千伏的直流母线电压，单只器件仍难以满足要求，多只器件串联是一种解决方案。由于电路特性的差异，会产生电压不平衡，因此，本文研究了基于单电压均衡栅极驱动器方案的双管串联 10 kV / 12.5 A SiC IGBT 。首先，分析了双管串联 SiC IGBT 的工作过程。随后建立了基于 SiC IGBT 行为模型的仿真电路，搭建了实验测试平台。在 6.5 kV/ 6A 条件下，实现了 3.69% 的电压不平衡率。此外，在不同直流母线电压和 PWM 周期下的实验结果证明了单电压均衡栅极驱动器方案的鲁棒性。

[1] X. She，A.Q.Huang，Ó .Lucía，et al. "Review of silicon carbide power devices and their applications，"[J]. in IEEE Transac- tions on Industrial Electronics，vol.64，no. 10，pp.8193-8205， Oct. 2017，doi: 10. 1109/TIE.2017.2652401. [2] J.Biela，M.Schweizer，S.Waffler，et al."SiC versus Si—Evalu- ation of potentials for performance improvement of inverter and DC-DC converter systems by SiC power semiconductors， "[J]. in IEEE Transactions on Industrial Electronics，vol. 58，no.7，pp.2872-2882，July2011，doi:10. 1109/TIE.2010.2072896. [3] G. Wang . "Static and dynamic performance characterization and comparison of 15 kV SiC MOSFET and 15 kV SiC n-IG BTs，"[J].2015 IEEE 27th International Symposium on Power Semiconductor Devices & IC's（ISPSD），2015，pp.229-232， doi:10. 1109/ISPSD.2015.7123431. [4] A. Kadavelugu. "Characterization of 15 kV SiC n-IGBT and its application considerations for high power converters，"[J]. 2013 IEEE Energy Conver-sion Congress and Exposition， 2013，pp.2528-2535，doi:10. 1109/ECCE.2013.6647027. [5] E. V. Brunt. "27 kV 20 A 4H-SiC n-IGBTs"[J]. Mater. Sci. Forum，vol. 821 -823，pp. 847-850，Jun. 2015. [6] S. Madhusoodhanan . "Solid-State Transformer and MV Grid Tie Applications Enabled by 15 kV SiC IGBTs and 10 kV SiC MOSFETs Based Multilevel Converters，"[J]. in IEEE Transactions on Industry Applications，vol.51，no.4，pp.3343- 3360，July-Aug.2015，doi: 0. 1109/TIA.2015.2412096. [7] M.Hinojosa，H.O'Brien，E.Van Brunt，et al. "Solid-state Marx generator with 24 kV 4H-SIC IGBTs，" [J].2015 IEEE Pulsed Power Conference（PPC），2015，pp. 1-5，doi: 10. 1109/PPC. 2015.7297038. [8] L.Han，L.Liang，Y.Kang，et al."A Review of SiC IGBT: Mod- els，Fabrications，Characteristics，and Applications，"[J]. in IEEE Transactions on Power Electronics，vol. 36，no.2，pp. 2080-2093，Feb.2021，doi:10. 1109/TPEL.2020.3005940. [9] K. Vechalapu，S. Bhattacharya，E. Van Brunt，et al. "Compara-tive evaluation of 15 kV SiC MOSFET and 15 kV SiC IGBT for medium voltage converter under same dv/dt conditions，" [J].2015 IEEE Energy Conversion Congress and Exposition （ECCE），2015，pp.927-934，doi:10. 1109/ECCE.2015.7309787. [10] K. Vechalapu，A. Negi and S. Bhattacharya，"Comparative performance evaluation of series connected 15 kV SiC IGBT devices and 15 kV SiC MOSFET devices for MV power con- version systems，"[J]. 2016 IEEE Energy Conversion Cong- ress and Exposition（ECCE），2016，pp. 1-8，doi: 10. 1109/EC CE.2016.7854936. [11] K. Vechalapu，A. Negi and S. Bhattacharya. "Performance evaluation of series connected 15 kV SiC IGBT devices for MV power conversion systems，" [J].2016 IEEE Energy Con- version Congress and Exposition（ECCE），2016，pp.1-8，doi: 10. 1109/ECCE.2016.7855343. [12] R. Wang，L. Liang，Y. Chen，et al. "A Single Voltage-Balancing Gate Driver Combined With Limiting Snubber Circuits for Series-Connected SiC MOS-FETs，"[J]. in IEEE Journal of / Emerging and Selected Topics in Power Electronics，vol.8， no. 1，pp. 465-474，March 2020，doi: 10. 1109/JESTPE. 2019. 951736. [13] L.Han，L.Liang andY.Kang. "A SiC IGBT Behavioral Model with High Accuracy and Fast Convergence，"[J].2020 IEEE Workshop on Wide Band-gap Power Devices and Applica- tions in Asia（WiPDA Asia），2020，pp.1-6，doi:10. 1109/WiP DAAsia49671.2020.9360262.
